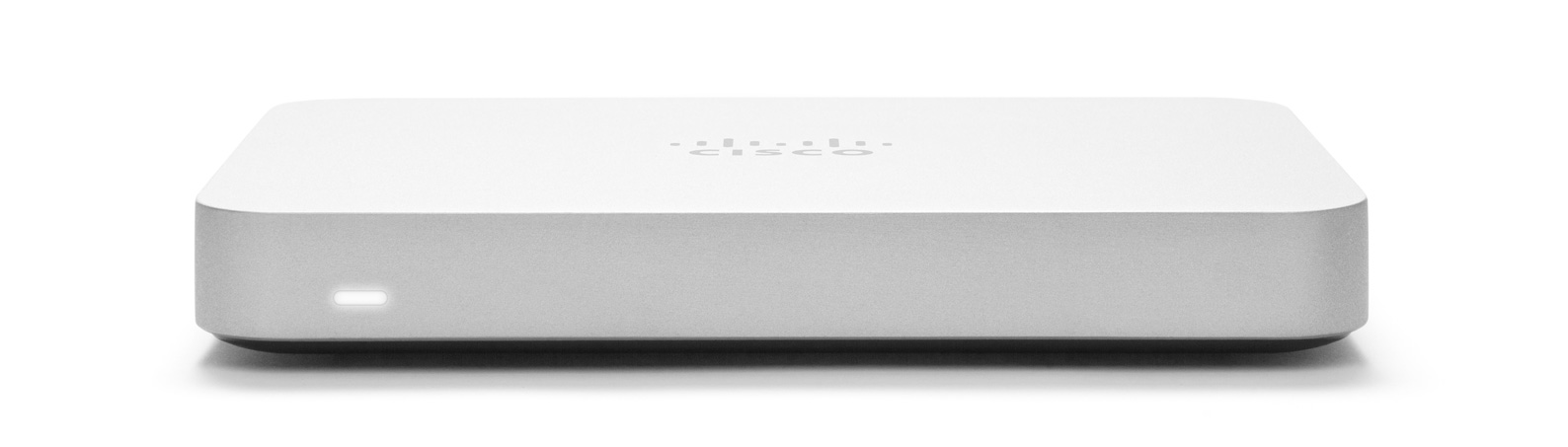

    Z1 - Cloud Managed Teleworker Gateway


100% Cloud Managed Teleworker Gateway

Z1

Hardware

4 ports for printers, phones, and other devices 1 GbE WAN port, 4 GbE LAN ports 3G / 4G failover via USB modem Sleek, low profile design

Wireless

Dual-concurrent 802.11n radios 2x2 MIMO, up to 600 Mbps data rate Supports up to 4 SSIDs

Traffic shaping and application management

Layer 7 application visibility and traffic shaping Application prioritization

Teleworker gateway services

Stateful firewall separates corporate and personal traffic Extend VoIP phones over WAN Auto VPN™ self-configuring site-to-site VPN Access corporate HQ via site-to-site VPN

Cloud-based centralized management

Managed centrally over the Web Classifies applications, users and devices Zero-touch, self-provisioning deployments

Interfaces

WAN: 1 × 1 GbE LAN: 4 × 1 GbE USB: 1 × USB 2.0 (for 3G/4G failover)

Network and Security Services

Stateful firewall, 1:1 NAT, DMZ Auto VPN™ self-configuring site-to-site VPN Client VPN (IPSec L2TP), limit 2 authorized users (with Meraki-hosted authentication only) VLAN and DHCP services Static routing User and device quarantine

Integrated Wireless

4 SSIDs Dual-radio: 1 × 802.11b/g/n (2.4 GHz), 1 × 802.11a/n (5 GHz) Max data rate 600 Mbit/s 4 × interal dipole antennas (gain: 3 dBi @ 2.4 GHz, 4 dBi @ 5 GHz) WPA2-PSK authentication Regulatory: FCC (US), IC (Canada), C-Tick (Australia / New Zealand), RoHS

Monitoring and Reporting

Throughput, connectivity monitoring, and email alerts Detailed historical per-port and per-client usage statistics Application usage statistics Org-level change logs for compliance and change management VPN tunnel and latency monitoring Network asset discovery and user identification Periodic emails with key utilization metrics Syslog integration

Remote Diagnostics

Live remote packet capture Real-time diagnostic and troubleshooting over the web Aggregated event logs with instant search

WAN Performance Management

Automatic Layer 3 failover (including VPN connections) Application level (Layer 7) traffic analysis and shaping

Management

Managed via the web using the Meraki dashboard Single pane-of-glass management of wired and wireless networks Zero-touch remote deployment (no staging needed) Automatic firmware upgrades and security patches Centralized policy management Org-level two-factor authentication and single sign-on Role-based adminstration with change logging and alerts

Performance

Stateful firewall throughput: 50 Mbps VPN throughput: 10 Mbps Recommended for teleworker (up to 5 users)

Physical and Environmental Specifications

Dimensions: 6.46" × 4.55" × 1.14" (164mm × 116mm × 29mm) Weight: 0.9 lbs (0.408 kg) Power: single 18W (12 V / 1.5 A) power supply included Operating temperature: 32°F to 104°F (0°C to 40°C) Humidity: 5 to 95% non-condensing Desktop or wall mount (all standard mounting hardware included) Kensington lock hard point

Regulatory

FCC (US) CB (IEC) CISPR (Australia / New Zealand)

Warranty

Full lifetime warranty with next-day advanced replacement included

Ordering Information

Available with Enterprise license only

Contact Us for a Quotation
