  • Wi-Fi Installation

    Mondrian Cityplace

    24/7 Internet Access for the Public Areas

  • Wi-Fi Installation

    Mondrian Cityplace Club Room

  • Wi-Fi Installation

    Mondrian Cityplace "Zen Garden"

  • Wi-Fi Installation

    Mondrian Cityplace Pool

  • Wi-Fi Installation

    Trianon Pool

    802.11 b/g Internet Access

  • Wi-Fi Installation

    Trianon Pool

  • Wi-Fi Installation

    Trianon Pool

    Internet Connection 24/7

  • Wi-Fi Installation

    Trianon "Cyber Cafe"

  • Wi-Fi Installation

    Trianon Courtyard

  • Wi-Fi Installation

    Fairfield Inn & Suites Dallas North

    Meraki 802.11n Wireless Access Points

  • Wi-Fi Installation

    Fairfield Inn & Suites Dallas North

    Breakfast Room - 802.11n Dual-Radio, Dualband, Access Point

  • Wi-Fi Installation

    Fairfield Inn & Suites Dallas North

    Lobby - 802.11n Dual-Radio, Dualband, Access Point

  • Wi-Fi Installation

    Fairfield Inn & Suites Dallas North

    1st Floor Coverage Prediction

  • Wi-Fi Installation

    Best Western Plus Richmond Inn & Suites

    Meraki 802.11n Wireless Access Points

  • Wi-Fi Installation

    Best Western Plus Richmond Inn & Suites

    Boardroom

  • Wi-Fi Installation

    Best Western Plus Richmond Inn & Suites

    Tennis Court and Courtyard

  • Wi-Fi Installation

    Best Western Plus Richmond Inn & Suites

    Guestroom WiFi Coverage Provided by Meraki MR12s

  • Wi-Fi Installation

    Best Western Plus Richmond Inn & Suites

    Conference Area WiFi Coverage Provided by Meraki MR16s

  • Wi-Fi Installation

    Pavestone Company

    802.11a Wireless Bridges

  • Wi-Fi Installation

    Pavestone Main Building

    802.11a Root Bridges

  • Wi-Fi Installation

    Pavestone Plant 1

    802.11a Bridge

  • Wi-Fi Installation

    Pavestone Block Building

    Power Injector (typical)

  • Wi-Fi Installation

    Pavestone Machine Shop

    802.11a Bridge

  • Wi-Fi Installation

    Pavestone Bagging Plant

    802.11a Bridge

  • Wi-Fi Installation

    Pavestone Block Plant

    802.11a Bridge

  • Wi-Fi Installation

    Pavestone Bagging Plant

    Legacy Bridge Removal

  • Wi-Fi Installation - Airport Bridges

    Airport Bridges Layout

    Two Wireless Bridges Installed

  • Wi-Fi Installation - Airport Bridges

    Main Building Installation

    802.11g Root Bridge for the Hanger Expansion

  • Wi-Fi Installation - Airport Bridges

    Hanger Expansion

    Clear Line of Sight from the Main Building to the New Hanger Space

  • Wi-Fi Installation - Airport Bridges

    Hanger Bridge Installation

    Cisco 802.11b/g Outdoor Bridge with Integrated Antenna

  • Wi-Fi Installation - Airport Bridges

    Dual Bridge Installation on Engineering Building

    One of Two 802.11b/g Non-Root Bridges

  • Wi-Fi Installation - Airport Bridges

    Installation Complete!

    802.11b/g Non-Root Bridge



  Installation Showcase

Mondrian Cityplace




Trianon


Pavestone Company Bridges


Fairfield Inn & Suites


  Wireless (Wi-Fi) Local Area Network Installation


Wireless LAN Installation for the
Dallas/Ft. Worth Metroplex

RHO Wireless will plan the wireless installation, install your wireless network, and then test and verify the operation of the wireless network. The installation will be documented for future reference. If you have already completed your requirements analysis, the first step in the installation process is a Predictive Coverage Analysis and establishment of a Network Plan.

To complete the Predictive Coverage Analysis a detailed site plan is required. A floor plan image or CAD data is required for all of the buildings and all of the floors. Supported formats for the floor plan images are: bmp, dib, dwg, dxf, emf, gif, vsd, jpg, and wmf. The more detailed the better, especially if the drawings have wall types or show were double wall thicknesses have been used.

The Predictive Coverage Analysis produces a Network Plan that includes the access points locations and signal coverage predictions. Once the Network Plan is established, a visual inspection of the site is needed. The Network Plan generated by the predictive coverage assessment and analysis serves as the basis for the site's visual inspection and the pre-deployment site survey. A budgetary estimate for the access points and their installation is accomplished since that the number and locations of the access points are known.

The Predictive Coverage Analysis is normally followed by a Pre-Deployment Site Survey. A properly conducted pre-deployment site survey can help ensure that the ultimate network installation operates at peak efficiency with a minimum of extraneous or conflicting components.

Installation is the most physically demanding phase of the project and includes setup and testing to ensure that the selected Wireless LAN hardware will provide the desired coverage and bandwidth to the Wireless LAN users. Prior to installation, the hardware is normally configured and tested in the laboratory to ensure that the installation progresses smoothly. The wireless network is then installed at the customer's site using the Network Plan modified, if necessary, by the results of the Pre-Deployment Site Survey. The activities that take place during installation phase include:

  • Lab configuration and testing of access points, bridges, routers and switches
  • Connection of the router and/or switches to the broadband backbone (DSL, Cable, T-1, T-3, or DCS-3), and verification of operation
  • Mounting and connection of access points, antennas and/or bridges
  • Mounting of power injectors, if required
  • Final configuration of access points and hardware
  • A Post-Deployment Sit Survey is conducted to verify that the wireless coverage, signal strength, and throughput requirements are met.
  • Documentation, warranty information, and Wireless LAN operation settings and passwords are then provided to the customer

Contact Us for a free predictive coverage analysis and budgetary estimate:

RHO Wireless
6804 Genstar Lane
Dallas, TX 75252

972-985-0485
Sales@rhowireless.com

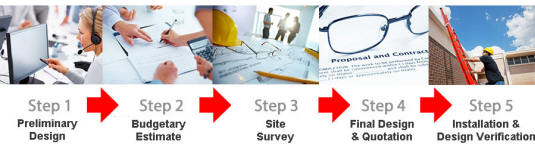

Design Steps
