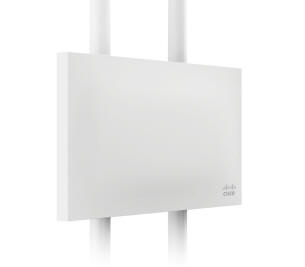

    MR74 - Outdoor and Industrial 802.11ac Wave 2 Wireless

MR74

Ideal use cases

Harsh, industrial, and outdoor environments Voice, video, and performance-intensive networks

Hardware features

IP67 rated: tested for dust, shock, vibration, and moisture 4 radios: 2.4 GHz, 5 GHz, dual-band WIDS/WIPS, and Bluetooth BLE 2-stream 802.11ac Wave 2 MU-MIMO and 802.11n, up to 1.3 Gbps Gigabit Ethernet port, 802.3af PoE compatible

Cloud management

Network-wide visibility and control Self-provisioning for rapid deployment Automatic reporting Seamless firmware updates

Enterprise security

802.1X and native Active Directory integration Air Marshal: real-time WIPS with forensics Stateful Layer 3-7 firewall Identity-based group policies Built-in antivirus scan (NAC)

Guest access

1-click secure guest access Guest isolation firewall Customizable splash pages Integrated Facebook WiFi login

RF optimization

Cloud-based RF planning Built-in spectrum analysis Dual-concurrent radios with band steering

Layer 7 traffic shaping

Classifies hundreds of applications Create per-application bandwidth limits Prioritize productivity apps Restrict recreational traffic

Location Analytics

Measure visitor capture rate, visit length, and repeat visit rate Measure visitor trends over time and compare performance across locations Enable location services through integrated iBeacon functionality

Device management

Create device-specific firewall rules Deploy applications and updates Troubleshoot issues with built-in RDP

Mesh

Self-configuring, self-optimizing mesh High performance multi-radio routing protocols Extends coverage to hard-to-wire areas Self-heals after cable or switch failures

Radios

One 802.11b/g/n, one 802.11ac/a/n radio, and one dedicated for dual-band WIPS & spectrum analysis Concurrent operation of all three radios Max data rate 1.2 Gbit/s Integrated Bluetooth low energy radio (concurrent to WiFi radios)

Operating Bands

FCC (US)

2.412-2.484 GHz 5.150-5.250 GHz (UNII-1) 5.725-5.825 GHz (UNII-3)

EU (Europe)

2.412-2.484 GHz 5.150-5.250 GHz (UNII-1) 5.250-5.350, 5.470-5.600 GHz, 5.650-5.725 GHz (UNII-2e)

802.11ac & 802.11n Capabilities

2x2 multiple input, multiple output (MIMO) with two spatial streams Maximal ratio combining (MRC) Beamforming 20, 40, and 80 MHz (802.11ac), 20 and 40 MHz channels (802.11n) Packet aggregation Cyclic shift diversity (CSD) support

Power

Power over Ethernet: 24 - 57 V (802.3af compatible) Power consumption: 13.87 W max Power over Ethernet injector sold separately

Mounting

Mounts to walls and horizontal, vertical, and angled poles Mounting hardware included

Physical Security

Security screw included Anti-tamper cable bay Concealed mount plate

Environment

Operating temperature: -40°F to 140°F (-40°C to 60°C) IP67 environmental rating (sealed against water and dust)

Physical Dimensions

10.1” x 6.22” x 3.3” (256 mm x 158 mm x 83 mm) not including mount Weight: 3.1 lb (1.4 kg)

Interfaces

One 100/1000 Mbps auto-crossover Ethernet port Four external N-type connectors (note: antennas sold separately) 1 power/booting/firmware upgrade status

Security

Integrated policy firewall (Identity Policy Manager) Air Marshal: real-time WIPS with forensics Guest Isolation WEP, WPA WPA2-PSK WPA2-Enterprise with 802.1X TKIP and AES encryption VLAN tagging (802.1Q)

Quality of Service

Advanced Power Save (U-APSD) DSCP (802.1p)

Mobility

PMK and OKC credential support for fast Layer 2 roaming 802.11r and 802.11k L3 roaming

LED Indicators

4 signal strength 1 Ethernet connectivity 1 power/booting/firmware upgrade status

Regulatory

RoHS

Warranty

1 year hardware warranty with advanced replacement included

Ordering Information

MR74-HW
Meraki MR74 Cloud-Managed Access Point

MA-INJ-4-US
Meraki 802.3at Power over Ethernet Injector (US Plug)

MA-ANT-20
Meraki Dual–Band 4 - 7 dBi Omni Antenna, N-Type, Set of 2

MA-ANT-21
Meraki 5 GHz Sector Antenna, 13 dBi, N-Type

MA-ANT-23
Meraki 2.4 GHz Sector Antenna, 11 dBi, N-Type

MA-ANT-25
Meraki Dual–Band Patch Antenna, 8 / 6.5 dBi, N-Type

Note: Meraki Enterprise license required.

Contact Us for a Quotation
