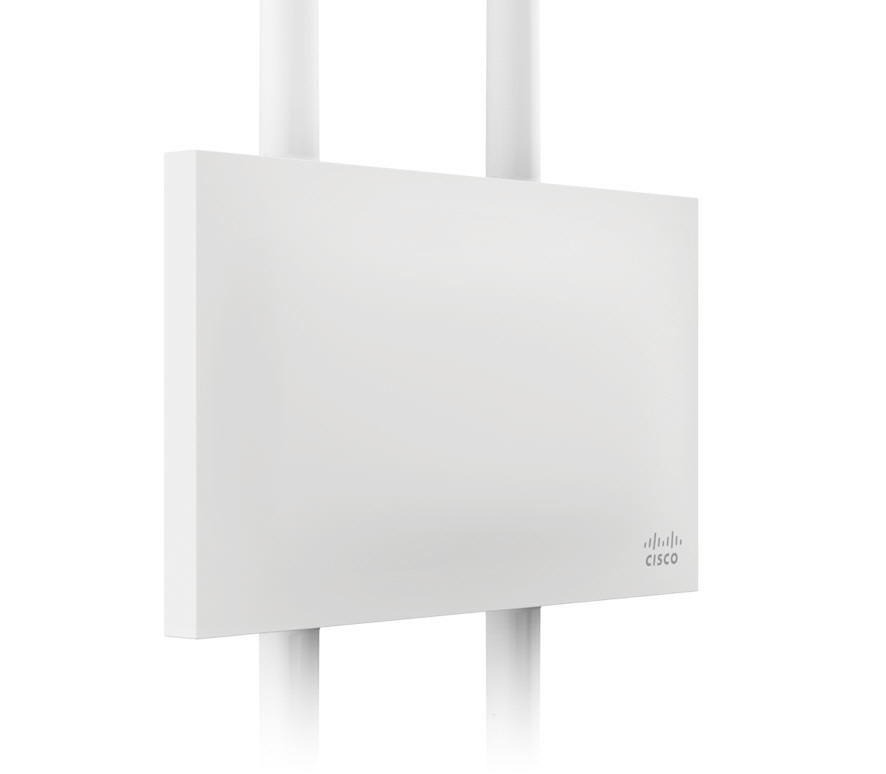

    MR84 - Performance-driven 802.11ac for tough, high-density environments

External Antennas and Integrated, Dedicated Security and Bluetooth Beacons


Ideal use cases

High-density and challenging RF stadium, arena, and open-air deployments Harsh, rugged, and outdoor environments Voice, video, and performance-intensive networks

Hardware features

IP67 rated, tested for dust, shock, vibration, and moisture 4 radios: 2.4 and 5 GHz, dual-band WIDS/WIPS and Bluetooth Low Energy (BLE) 4-stream 802.11ac, 160MHz channels, up to 2.5 Gbps dual-aggregate throughput 1 x Gigabit Ethernet port, 1 x Multigigabit Ethernet port, PoE: 802.3at

Cloud management

Network-wide visibility and control Self-provisioning for rapid deployment Automatic reporting Seamless firmware updates

Enterprise security

802.1X and native Active Directory integration Air Marshal: real-time WIPS with forensics Stateful Layer 3-7 firewall Identity-based group policies Built-in antivirus scan (NAC)

Guest access

1-click secure guest access Guest isolation firewall Customizable splash pages Integrated Facebook WiFi login

RF optimization

Dual-concurrent radios with MU-MIMO support, radios optimized for rate-vs-range performance Third radio dedicated to security and RF management Built-in real-time RF specturm view Cloud-based, automatic RF optimization

Layer 7 traffic shaping

Classifies hundreds of applications Create per-application bandwidth limits Prioritize productivity apps Restrict recreational traffic

Location Analytics

Measure visitor capture rate, visit length, and repeat visit rate Measure visitor trends over time and compare performance across locations Enable location services through integrated iBeacon functionality


2.4 GHz 802.11b/g/n/ac client access radio 5 GHz 802.11a/n/ac client access radio 2.4 GHz & 5 GHz dual-band WIDS/WIPS, spectrum analysis, & location analytics radio 2.4 GHz Bluetooth Low Energy (BLE) radio with Beacon and scanning support Concurrent operations of all four radios Supported frequency bands (country-specific restrictions apply):

2.412-2.484 GHz 5.150-5.250 GHz (UNII-1) 5.250-5.350 GHZ (UNII-2) 5.470-5.600, 5.660-5.725 GHz (UNII-2e) 5.725 -5.825 GHz (UNII-3)

802.11ac & 802.11n Capabilities

4 x 4 multiple input, multiple output (MIMO) with four spatial streams SU-MIMO and MU-MIMO support Maximal ratio combining (MRC) & beamforming 20 and 40 MHz channels (802.11n), 20, 40, 80, 160, 80 + 80 MHz channels (802.11ac) Up to 256-QAM on both 2.4 GHz & 5 GHz bands Packet aggregation


4 x 4 multiple input, multiple output (MIMO) with four spatial streams SU-MIMO and MU-MIMO support Power consumption: 21W max (802.3at) Power over Ethernet injector sold separately


Mounts to walls and vertical poles. Mounting hardware included

Physical Security

Security screw included Concealed mount plate


Operating temperature: -40 °F to 131 °F (-40 °C to 55 °C) Humidity: 5 to 95% non-condensing IP67 environmental rating

Physical Dimensions

28.6 cm x 17.6 cm x 18.5 cm including mounting bracket Weight: 3.8 lbs. (1.7 kg)


1x 100/1000/2.5G BASE-T Ethernet & 1x 10/100/1000 BASE-T Ethernet (RJ45) Four external N-type female antenna connectors


Integrated Layer 7 firewall with mobile device policy management Real-time WIDS/WIPS with alerting and automatic rogue AP containment with Air Marshal Flexible guest access with device isolation VLAN tagging (802.1q) and tunneling with IPsec VPN PCI compliance reporting WEP, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X EAP-TLS, EAP-TTLS, EAP-MSCHAPv2, EAP-SIM TKIP and AES encryption Enterprise Mobility Management (EMM) & Mobile Device Management (MDM) integration Cisco ISE integration for Guest access and BYOD Posturing

Quality of Service

Advanced Power Save (U-APSD) WMM Access Categories with DSCP and 802.1p support Layer 7 application traffic identification and shaping


PMK, OKC, & 802.11r for fast Layer 2 roaming Distributed or centralized layer 3 roaming


Embedded location analytics reporting and device tracking Global L7 traffic analytics reporting per network, per device, & per application


1 year hardware warranty with advanced replacement included

Ordering Information

Meraki MR84 Cloud Managed 802.11ac

AP MA-INJ-5-XX Meraki
Multigigabit 802.3at PoE Injector (XX = US/EU/UK/AU)

Meraki Dual-Band Omni Antennas

Meraki Dual-Band Patch Antenna

Meraki Dual-Band Sector Antenna

Cisco Dual-band, 4-port, 30° beam

Note: Meraki Enterprise license required.
